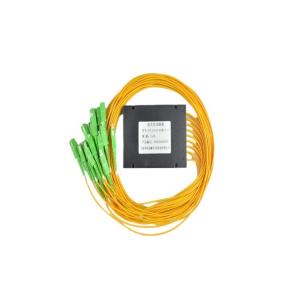

China Network PLC Splitter SC/APC ABS Box Singlemode Fiber Optical Splitter SC/UPC PCL Splitter wholesale

UPC PCL Splitter

Name: Network PLC Splitter SCAPC ABS Box Singlemode Fiber Optical Splitter SCUPC PCL Splitter
Brand: customize
Price: 3.50 USD

Ask Latest Price

Model Number :1*16 sc Apc PLC Splitter

Type :PLC splitter

Place of Origin :Zhejiang, China

Brand Name :customize

Use :ODF, Closure, FAT and FTD, Network

Warranty Time :3 year

Network :Wired LAN, None, wifi, 4g, 3G

Product name :1*6 sc Apc PLC Splitter

Application :Telecommunication

Fiber Type :G657A1, G657A2

Connector Type :SC FC LC ST

Function :Fiber Signal Transmission

Insertion loss :≤10.7dB

Operating Wavelength (nm) :1260~1650

Temperature Stability (-40~85 ℃)(dB) :0.5

Directivity (dB) :≥55

Packaging Details :blister packing >carton box>outer carton box

Port :Ningbo or Shanghai

Supply Ability :400000 Piece/Pieces per Month

MOQ :10 pieces

Price :$3.50/pieces >=10 pieces

Contact Now

Add to Cart

View Product Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Kehao Hanxing provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657 or customized
Insertion Loss (dB)	≤4.1	≤7.4	≤10.5	≤13.8	≤17.1	≤20.4
Loss Uniformity (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0
Return Loss (dB)	≥50	≥50	≥50	≥50	≥50	≥50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	≥55	≥55	≥55	≥55	≥55	≥55
Temperature Stability (-40~85 ℃)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85

Network PLC Splitter SC/APC ABS Box Singlemode Fiber Optical Splitter SC/UPC PCL Splitter

Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
